Elo Printer Jam Issue

  • In case of a paper jam, open the paper jam printer door (highlighted in light gray outline below) to clear the paper jam.
  • Open the paper jam printer door by exerting upward pressure on the side rib (highlighted by the blue arrow below).
    • If unable to unlatch the door using finger force, use an apparatus (e.g. coin/flat head screwdriver) to gently exert an upward lever force to the side latch.
  • After removing the paper jam door, rotate the knob to clear the paper jam. Once the paper jam is
    cleared, replace the paper jam door.

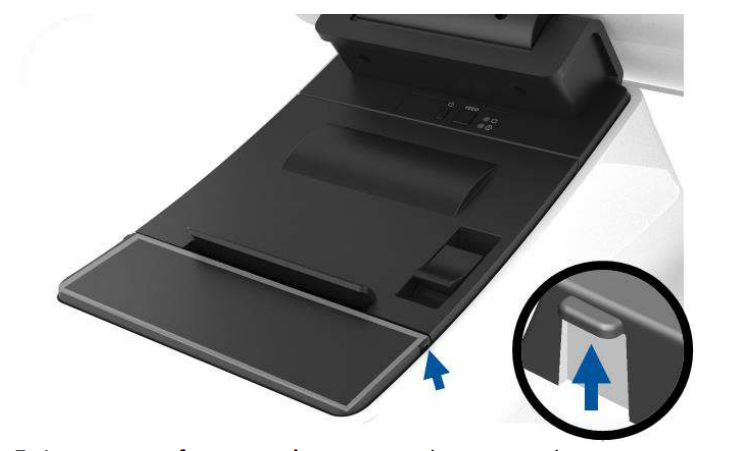

Figure 5. In case of a paper jam, exert upward pressure on the side rib (blue arrow) to open the paper jam printer door (light gray)





Figure 6. In case of a paper jam, rotate the knob to clear the jam.
